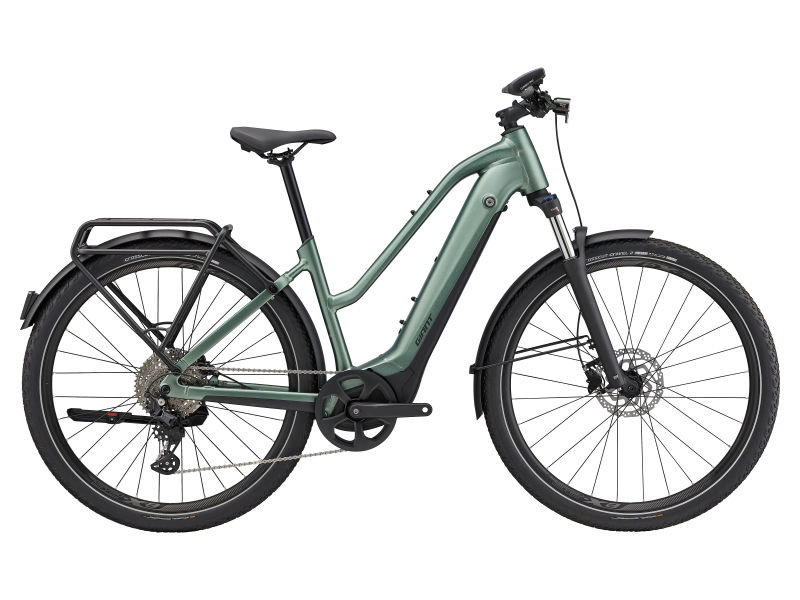

The Giant Explore E+1 STA 2023 uses a Yamaha SyncDrive Sport 2 motor producing 75Nm of torque. This is coupled with a EnergyPak Smart 625 battery which is range extender compatible. The bike features a ALUXX aluminum frameset with a 100mm Suntour suspension fork.
RideControl Dash coupled with the Ride control app allows the rider to check range, battery level and support mode, along with data such as speed and distance
Giant Explore E+1 STA 2023 Electric Hybrid Bike specifications
Battery: EnergyPak Smart 625, EnergyPak Plus 250 range extender compatible
Brake Levers: Shimano BL-MT201
Carrier: MIK rack. System bag & basket compatible
Cassette: Shimano LinkGlide, CS-LG400-10, 11-43T, 10-speed
Chain: Shimano LinkGlide, CN-LG500
Chainset: Forged Alloy Direct spider/chainguard 46T Steel narrow/wide chainring
Charger: Giant EnergyPak 4A smart charger compact, 60% charge in 2:30h
Controller: Giant RideControl Dash, Smart Assist automatic mode, 5 support levels, USB-C (10W)
Display: RideControl Dash, full color lcd screen
Fork: SR Suntour XCM34 LO, 100mm travel, Hydraulic Lockout, 15x110mm AH Axle
Frame: ALUXX aluminum, Overdrive 1.8″ – 1.5″ head tube, integrated battery, integrated KSA40 kickstand mount
Frame Material: Alloy
Front Brake: Shimano BR-MT200, hydraulic disc, 180mm
Front Hub: Giant eTracker, 110x15mm
Front Light: Recon E HL50 StVZO
Front Tyre: Crosscut Gravel 2, 700x57c, Wire Bead, Tubeless Ready
Grips: Giant Contact
Handlebars: Giant Connect Riser 31.8x690mm
Kickstand: KSA40 direct mount kickstand
Lock: ABUS Xplus battery lock
Model Year: 2023
Motor: SyncDrive Sport 2, 75Nm, powered by Yamaha
Mudguards: Aluminium
Other Features: Giant RideControl App enabled ANT+ wireless display signal with e-bike profile
Pedals: Aluminium platform
Rear Brake: Shimano BR-MT200, hydraulic disc, 180mm
Rear Derailleur: Shimano Deore LinkGlide
Rear Hub: Giant eTracker, 148x12mm
Rear Light: AXA NYX 6-12V E-bike tail light with brake sensor
Rear Tyre: Crosscut Gravel 2, 700x57c, Wire Bead, Tubeless Ready
Rims: eX25, Tubeless Ready, 622×25 Aluminium
Saddle: Selle Royal Vivo Ergo Moderate Unisex
Seat Post: Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
Shift Levers: Shimano Deore, LinkGlide 1×10
Spokes: Stainless steel, e-bike optimised
Stem: Giant Contact (S/M: 80mm L/XL/XXL 100mm)
