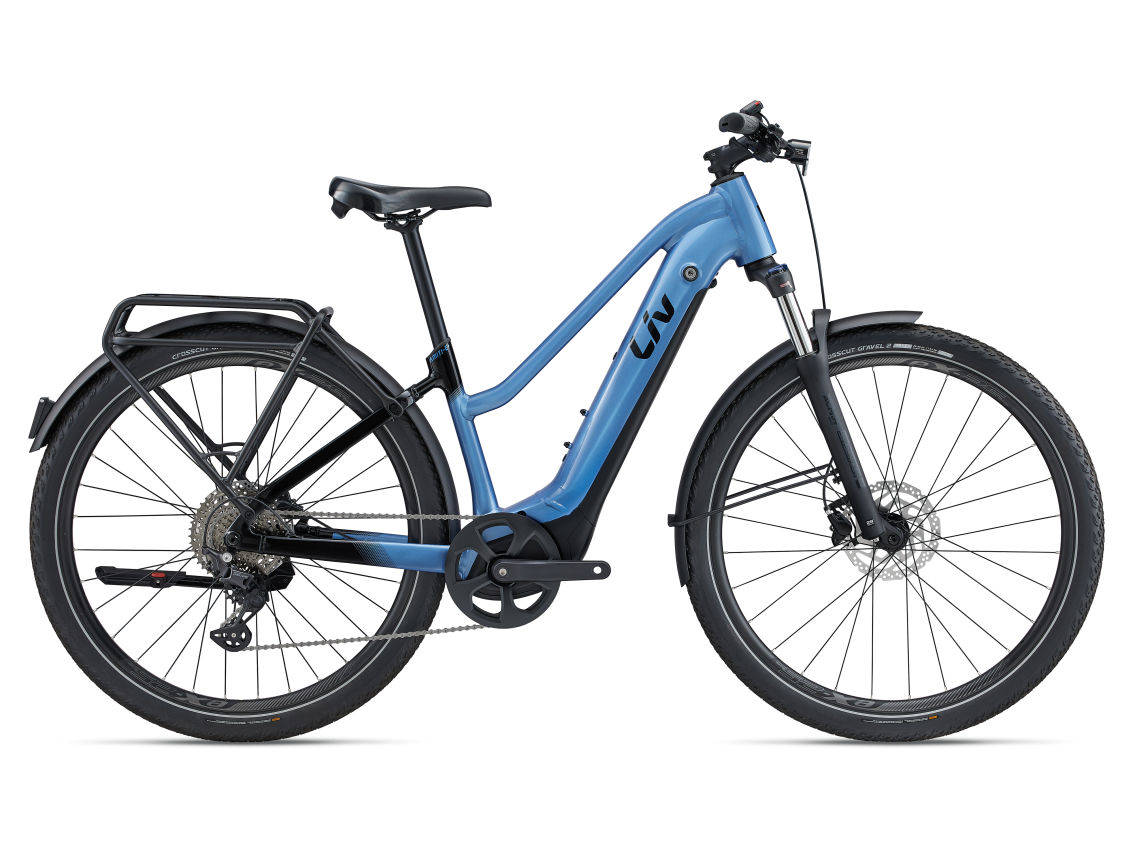

The Giant Liv Amiti E+1 ladies hyrid electric bike uses a Yamaha SyncDrive Sport 2, 75Nm electric motor coupled with a Giant EnergyPak 625Wh battery. This gives a Liv Amiti a maximum range of 180km. All aspects of the power system can be controlled from the RideControl Dash display which has a full color lcd screen showing ride data. This can be paired with the RideControl App for optional phone notifications. There is also a USB port to keep your devices charged.
Giant Liv Amiti E+ 1 2023 Electric Hybrid Bike specifications
Battery: Giant EnergyPak 625Wh, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production
Brake Levers: Shimano BL-MT201
Carrier: MIK rack. System bag & basket compatible
Cassette: Shimano LinkGlide, CS-LG400-10, 11-43T, 10-speed
Chain: Shimano, LinkGlide, CN-LG500
Chainset: Forged Alloy Direct spider/chainguard 46T Steel narrow/wide chainring
Controller: RideControl Dash

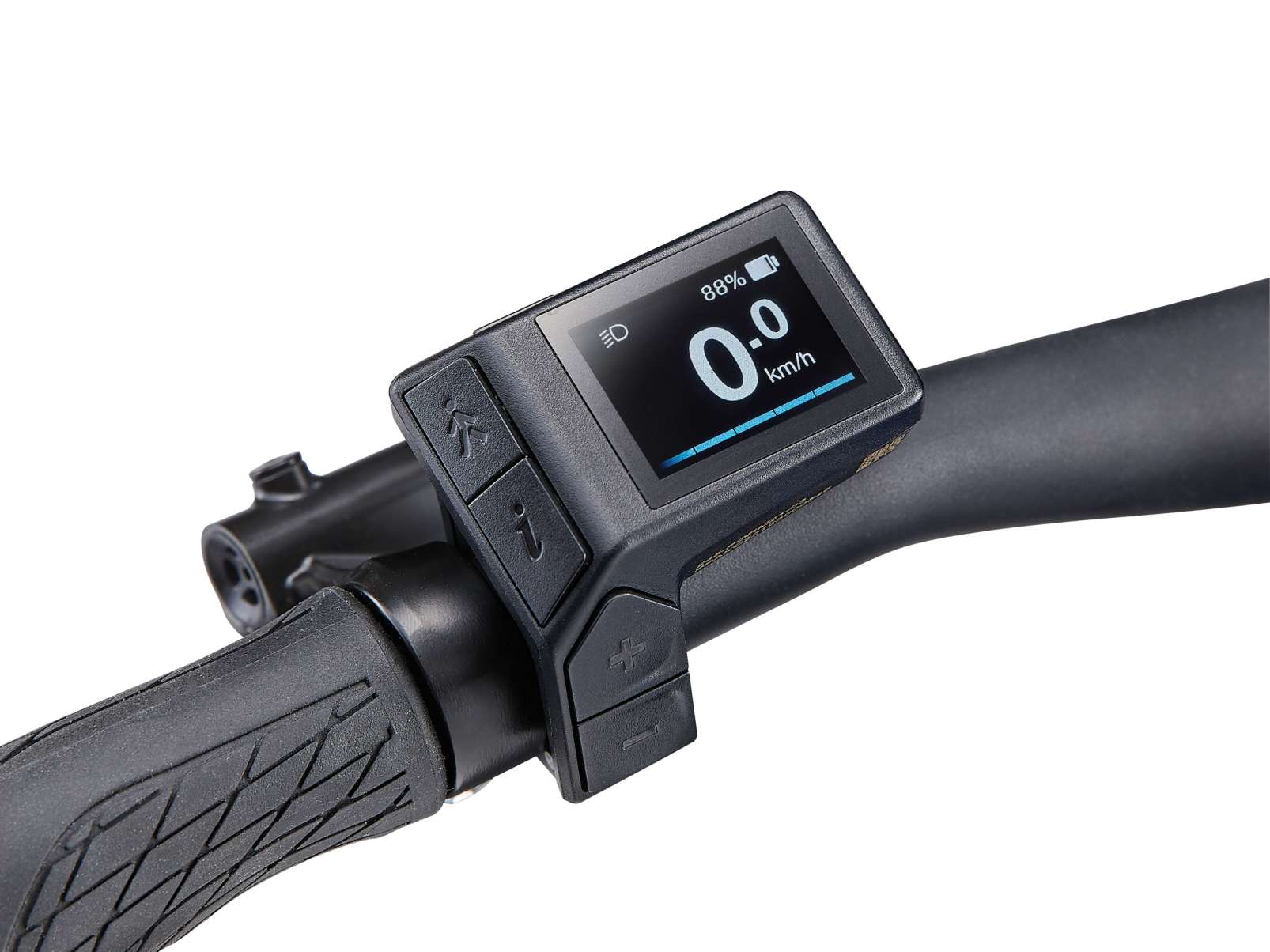

Display: RideControl Dash, full color lcd screen

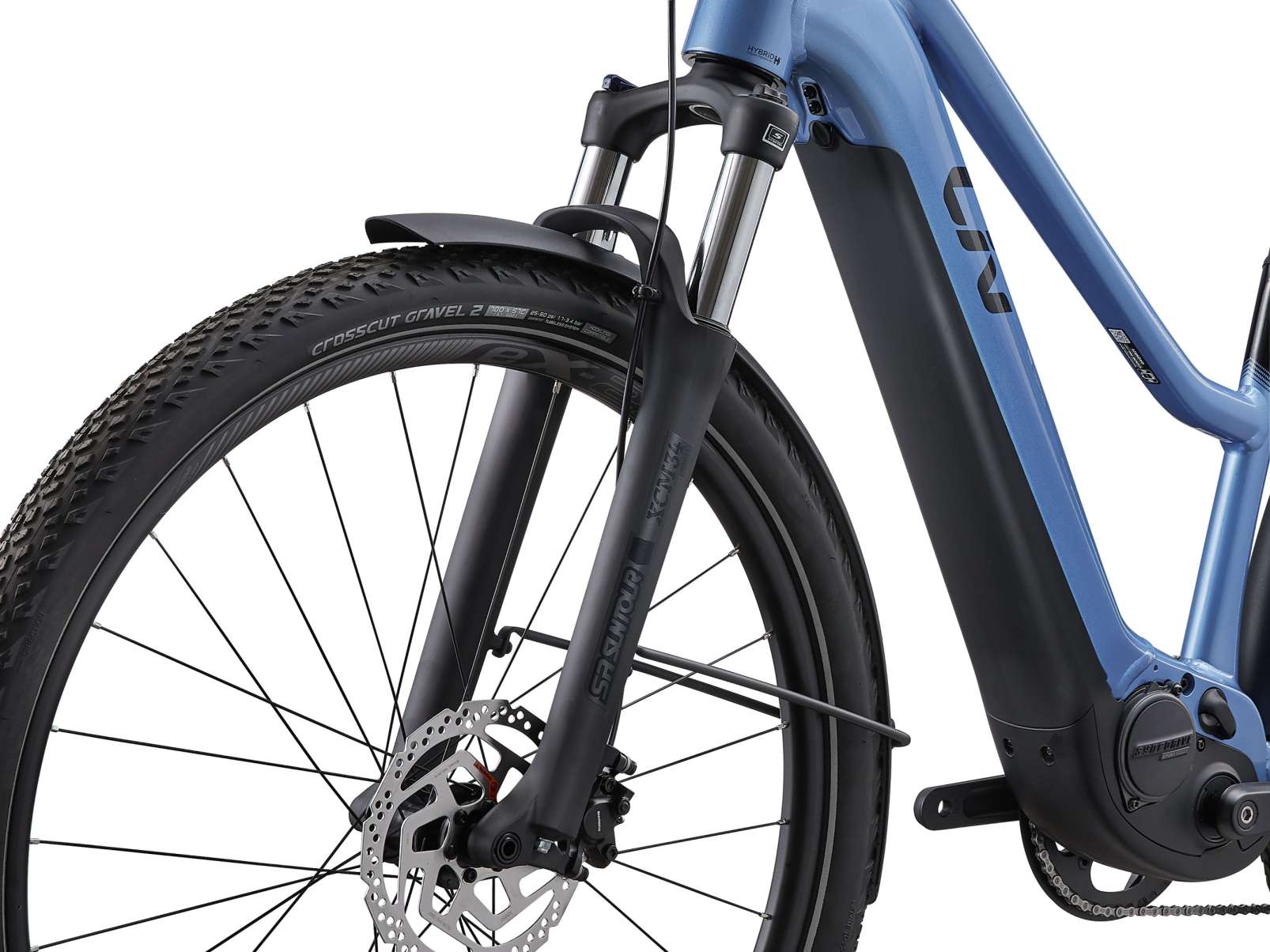

Fork: SR Suntour XCM34 LO, 100mm travel, Hydraulic Lockout, 15x110mm AH Axle
Frame: ALUXX aluminium, Overdrive 1.8″ – 1.5″ head tube, integrated battery, integrated KSA40 kickstand mount
Frame: Alloy
Front Brake: Shimano BR-MT200, hydraulic disc, 180mm
Front Hub: Giant eTracker, 110x15mm

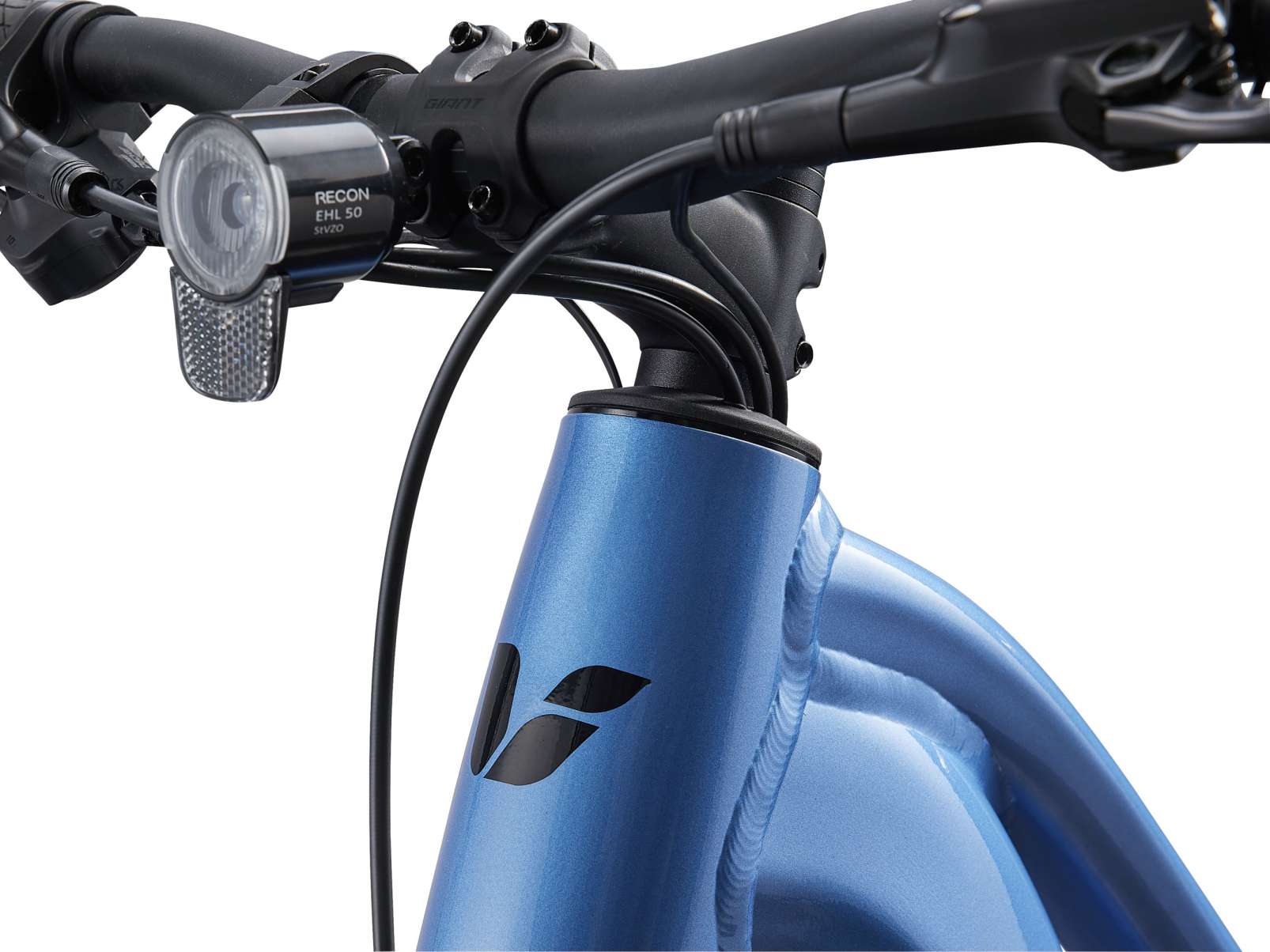

Front Light: Recon E HL50 StVZO
Front Tyre: Crosscut Gravel 2, 700×57, Wire Bead, Tubeless Ready
Grips: Liv Contact Ergo Max Plus
Handlebars: Giant Connect Riser 31.8x620mm (XS/S), 690mm(M/L)
Lock: ABUS Xplus battery lock
Model Year: 2023
Motor: SyncDrive Sport 2, 75Nm, powered by Yamaha
Pedals: Aluminium platform
Rear Brake: Shimano BR-MT200, hydraulic disc, 180mm
Rear Derailleur: Shimano Deore LinkGlide
Rear Hub: Giant eTracker, 148x12mm
Rear Light: AXA NYX 6-12V E-bike tail light with brake sensor
Rear Tyre: Crosscut Gravel 2, 700×57, Wire Bead, Tubeless Ready
Rims: eX25, Tubeless Ready, 622×25 Aluminium
Saddle: Liv Sport Comfort
Seat Post: Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
Shift Levers: Shimano Deore LinkGlide 1×10
Spokes: Stainless steel, e-bike optimised
Stem: Giant Contact (XS/S/M: 80mm, L:100mm)
Weight: 27.1 kilos (59.7 lbs)
Sizing Guide and Geometry:
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country. XS 150 cm to 163 cm
S 158 cm to 169 cm
M 164 cm to 175 cm
Bike diagram with measurements referenced in table that follows:
XS S M
A Seat Tube Length (mm) 380 410 435
B Seat Tube Angle 75.0° 74.5° 73.5°
C Top Tube Length (mm) 575 585 605
D Head Tube Length (mm) 135 145 160
E Head Tube Angle 69.0° 69.5° 69.5°
F Fork Rake (mm) 51 51 51
G Trail (mm) 88 84 84
H Wheelbase (mm) 1149 1148 1157
I Chain Stay Length (mm) 470 470 470
J Bottom Bracket Drop (mm) 60 60 60
K Stack (mm) 660 672 686
L Reach (mm) 398 398 401
M Stand Over Height (mm) 676 684 663
N Handlebar Width (mm) 650 650 690
O Stem Length (mm) 80 80 100
P Crank Length (mm) 165 165 170
Q Wheel Size 700C 700C 700C
More information here Giant Bikes
